Customized Twin Screw Barrel with Internal Bore Grooves Sprayed with Bimetallic Alloy
Date:2023-3-14 Author:hcscrew
HUACHEN Screw offers customized twin screw barrels with internal bore grooves sprayed with bimetallic alloy for superior wear resistance. Our expertly engineered screw barrels ensure maximum efficiency and longevity for your plastic extrusion needs. Contact us today to learn more!
Conical twin screw barrels, parallel twin screw barrels
HUACHEN Screw specialises in producing high quality conical twin screw barrels for all kinds of plastic pipes, profiles, sheets, foam boards, pelletizing, wood plastic WPC, stone plastic SPC flooring/decking etc. And customized all kinds of parallel twin screw barrels.
1. We manufacture and have sufficient stock of conical twin screw specifications:
45/100, 51/105, 53/128, 55/125, 55/128, 55/120, 55/110, 65/132, 65/138, 80/156, 92/188 and 100/220, customized screw barrel available.
2. Parallel twin screw barrel specifications are:
52/25, 60/25, 75/36, 90/36, 107/28, 120/26, 130/28, 135/28, 160/33 and others, customized screw barrel availbale.
The material chosen for the screws is made of 38CrMoAlA and other high quality alloy steel through the process of tempering, qualifying, forming, nitriding, fine grinding, and polishing, etc., with high wear resistance and corrosion resistance. The screw flights are sprayed with tungsten carbide alloy, and the barrel bore grooves are sprayed with alloy or the barrel is fitted with SKD11 sleeves. It can effectively improve the wear resistance of the screw barrel and increase its service life. Particularly suitable for processing PVC materials with a high calcium content.
Mainly used in the following industries
1. UPVC/CPVC pipe conical twin screw barrels
2. Conical twin screw barrels for PVC foam series
3. Conical twin screw barrels for PVC high-calcium pipes
4. PE corrugated pipe conical twin screw barrel
5. PVC wall panel, buckle, ceiling conical twin screw barrel
6. PVC wood plastic / WPC conical twin screw barrel
7. PE/PVC pelletizing conical twin screw barrel
8. PVC profile conical twin screw barrel
9. PVC stone plastic conical twin screw barrel
10. SPC flooring conical twin screw barrel
Details of 65/132 conical twin screw barrel
Screw structure has: Shenweida series, Liansu series, Jinhu series, Jinwei (JHL) series, China standard series, etc.
65/132 pipe conical twin screw design available: 80%-120% calcium powder, 150%-200% calcium powder, 250%-300% calcium powder, 300% high calcium powder formula above.
65/132 WPC profile conical twin screws are available: WPC one-step extrusion screw design, WPC two-step extrusion screw design, where the wood powder percentage is 30%-70%.
65/132 China standard for pelletizing conical twin screws.
65/132 various foaming and microcellular Foaming conical twin screws.
The output of 65/132 series screws can reach 200 kg/h – 220 kg/h.
The conical twin screw barrels can be adapted to Chinese extruders, so you can upgrade the performance of your old machine by simply replacing the screw and barrel.

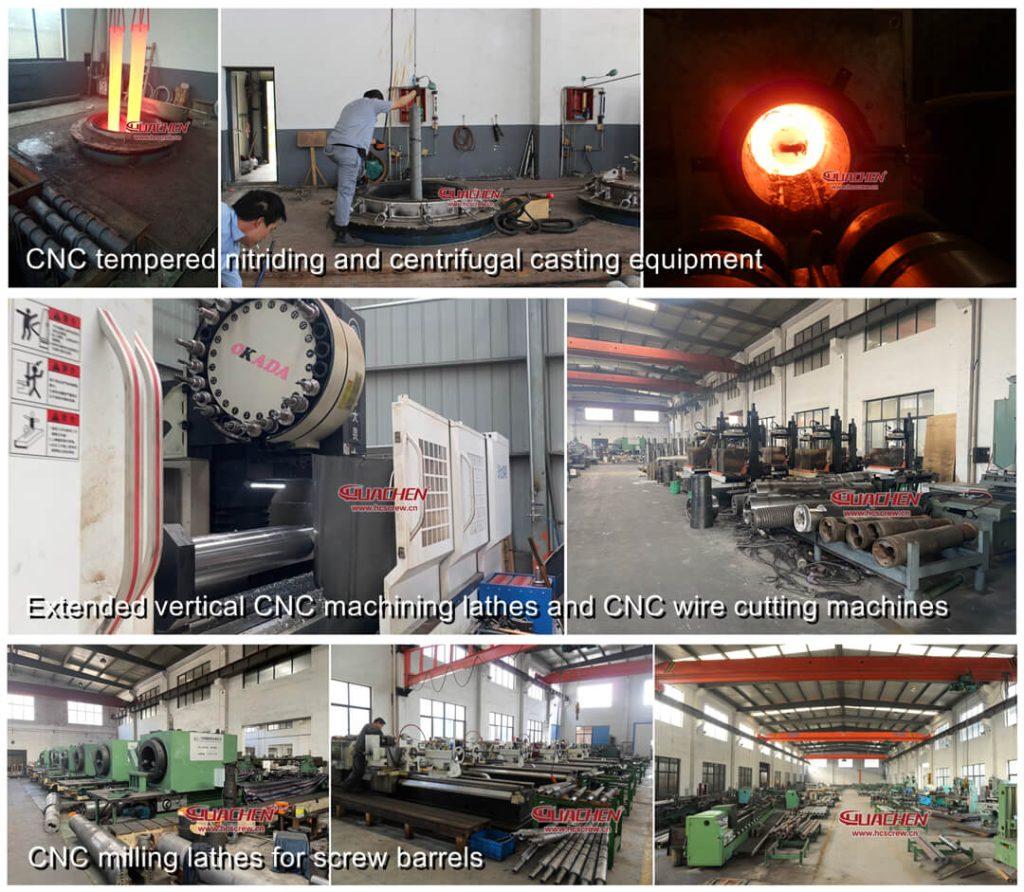

We have a team of experienced engineers who can provide maintenance and installation instructions for our screw barrels. We have first-class screw barrel machining technology and fine workmanship. To learn more about twin screw barrel models in stock, performance improvement options, and the latest quotation, please call us.
About the screw barrel Factory: HUACHEN
HUACHEN Screw has been a leading twin screw barrel manufacturer in Zhoushan Jintang since 1993. As one of the leading companies in designing and processing conical and parallel twin screw barrels, high speed extruder screw barrel, HUACHEN Screw can provide its customers with a wide range of services, including drawing rebuilding, design, modification, and customized screw barrels. Our company has also successfully exported and supplied screw barrels to customers worldwide.
>>Learn more about our company
