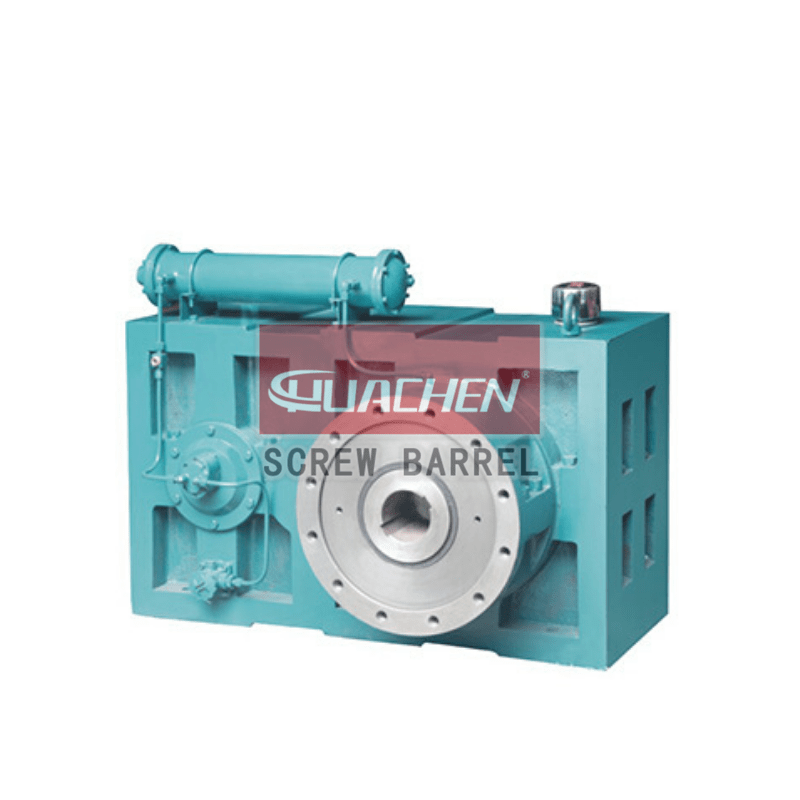

Extruder Gearbox ZLYJ Model for Single Screw Barrel
● MOQ: only sell them with screw barrels.
● Gearbox are standard sizes for easy installation. Get more info about our specs by contacting us.
- Product Detail
You can buy ZLYJ series single screw extruder gearboxes with single screw barrels from HUACHEN Screw. The gearbox ZLYJ model is for single screw extruders. It is widely used in various plastic extruders, plastic fiber spinning machines, etc.
1. The whole extruder gearbox looks stylish and generous and can be positioned vertically or horizontally to meet your needs.
2. Gear parameters and box structure can be adapted to various Chinese and Indian extruders. You can choose an alternative model based on the gearbox’s parameters. These gears are made of low carbon alloy steel, carburized, quenched, and ground. The teeth are grade 6, and the surface hardness is 54-62 HRC. It runs smoothly, is low-noise, and has high transmission efficiency.
3. The screw barrel connection is convenient due to the gearbox path jump, and the end jump complies with international standards.
4. The output shaft support structure is unique, and it extends the bearings’ useful life greatly.
5. The bearings, oil seals, lubricating oil pump and other standard parts are all from high quality China manufacturers.
Extruder gearbox ZLYJ model capacity
| Item | Ratio | Applicable screw diameter | Power/RW | Input speed/RPM | Output speed/RPM | Thrust bearing | Size LWH(mm) |
|---|---|---|---|---|---|---|---|
| ZLYJ112 | 8 | Φ35 | 5.5-4P | 800 | 100 | 8412 | 426*170*260 |
| ZLYJ133 | 8 | Φ45; Φ50 | 7.5-4P | 800 | 100 | 29415 | 478*215*280 |
| ZLYJ146 | 10 | Φ55 | 11-4P | 900 | 90 | 29417 | 560*250*320 |
| ZLYJ173 | 10 | Φ65 | 18.5-4P | 900 | 90 | 29420 | 576*256*340 |
| ZLYJ200 | 10 | Φ75 | 25-4P | 1000 | 80 | 29424 | 750*340*480 |
| ZLYJ225 | 12.5 | Φ75 | 25-4P | 1000 | 80 | 29428 | 800*360*500 |
| ZLYJ250 | 16 | Φ100 | 45-4P | 1120 | 70 | 29432 | 930*380*560 |
| ZLYJ280 | 16 | Φ105; Φ110 | 55-6P | 960 | 60 | 29434 | 970*410*600 |
| ZLYJ315 | 16 | Φ120 | 75-6P | 960 | 60 | 29436 | 1160*450*700 |
| ZLYJ330 | 16 | Φ130; Φ150 | 132-6P | 960 | 60 | 29436 | 1160*450*700 |
| ZLYJ370 | 16 | Φ150; Φ160 | 132-6P | 960 | 60 | 29440 | 1280*466*800 |
| ZLYJ420 | 16 | Φ165 | 160-6P | 960 | 60 | 29444 | 1420*550*920 |
Trading term
1. Business type: manufacturer, foreign trade company; 2. Origin: Zhoushan City, Zhejiang, China; 3. Warranty: 12 months for fresh material; 4. International Commercial Terms: FOB, CFR, CIF, EXW; 5. Terms of Payment: T/T, L/C; 6. Transport package: AA Grade Wooden Case.
>>Learn more about our order service flow here.
HUACHEN Screw has been a leading screw barrel manufacturer in Zhoushan Jintang since 1993. HUACHEN Screw can provide its customers with a wide range of services, including drawing rebuilding, design, modification, and customized screw barrels. We have also successfully exported and supplied screw barrels to customers throughout the world. If you have any questions, please feel free to contact us.
