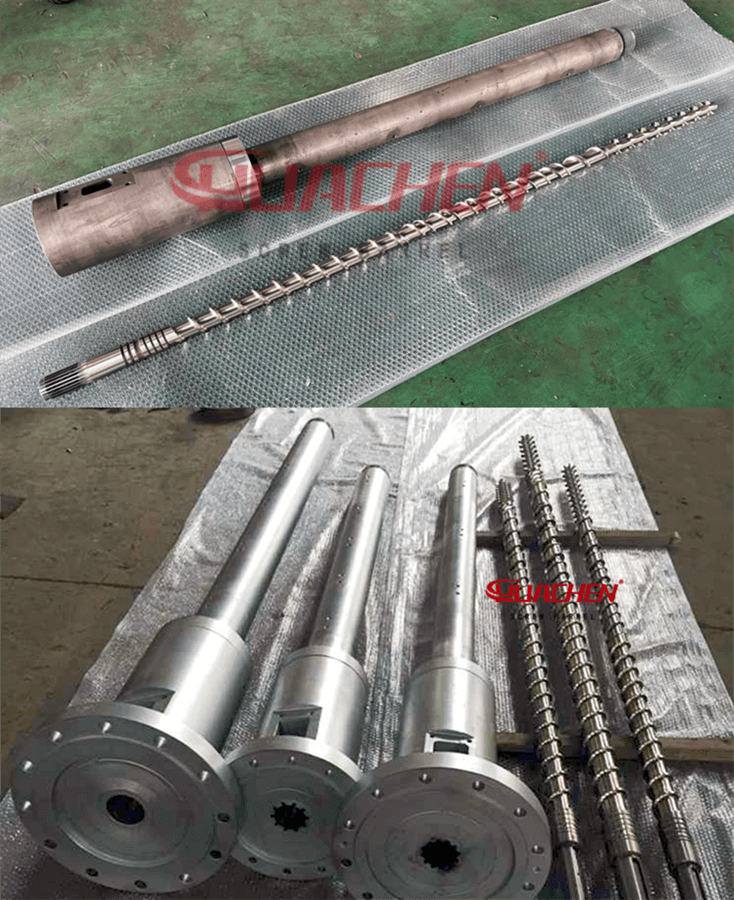

High Speed Screw and Barrel for HDPE Pipe Extrusion
● PE, HDPE, PP
● Pipe, film, pellets making
● Min. Order (MOQ): 1 screw + 1 barrel + 1 water jacket
● High speed screw barrel, semi high speed screw barrel, barrier screw, Maddock screw, screw mixer head, grooved feeding barrel
You Need Better high speed screw barrel at Good Price!
- Product Detail
Discover HUACHEN’s High Speed Extrusion Screw Barrels for HDPE Pipe Extrusion
Unlock unparalleled efficiency and performance in your HDPE pipe extrusion process with HUACHEN’s high-speed extrusion screw barrels. Designed for the plastic processing industry, our screw barrels offer fast feeding, superior mixing, and low energy consumption. Ideal for HDPE pipe, HDPE sheet, and PPR water supply pipe applications, our advanced technology ensures consistent and high-quality output.
Why Choose HUACHEN’s High Speed Extrusion Screw Barrels?
- 1. Optimized Screw Design: Combines barrier screws, Maddock mixer elements, and screw mixer heads with a grooved feed barrel and forced cooling water jacket.
- 2. Enhanced Material Control: Enables low-temperature extrusion, improves polymer mixing, and allows for a wider variety of final products.
- 3. Durable and Efficient: Made from high-quality nitrided steel (38CrMoAlA), precision machined, and heat-treated for excellent wear and corrosion resistance.
- 4. Easy to Install: Standard assembly sizes compatible with a wide range of extruder brands.
- 5. High-Quality Manufacturing: Available in various designs and capacities to meet the needs of different machinery brands.
Key Features
- 1. Low-Temperature Extrusion: Ensures melting material extrudes efficiently at lower temperatures.
- 2. Improved Polymer Mixing: Enhances the quality and consistency of the final product.
- 3. Variety in End Products: Facilitates the production of diverse PVC products.
- 4. High Material Quality: Uses premium materials and advanced processing for longevity and performance.
- 5. Standard Assembly Sizes: Ensures easy installation and compatibility.
Popular Models
Classic 33 serious
| Model | Screw Diameter (mm) | L/D ratio | Screw speed Max. (rpm) | Motor required (KW) | Output (Kg/h) |
|---|---|---|---|---|---|
| HCGX45 | Ф45 | 33 | 10-150 | 20/30 | 100/120 |
| HCGX65 | Ф65 | 33 | 20-150 | 45/75/90 | 150/250/350 |
| HCGX75 | Ф75 | 33 | 20-150 | 90/110 | 350/450 |
| HCGX90 | Ф90 | 33 | 20-110 | 160/185 | 550/700 |
| HCGX120 | Ф120 | 33 | 20-90 | 280/315 | 950/1100 |
| HCGX150 | Ф150 | 33 | 20-75 | 355/400 | 1500 |
High efficient 38 series
| Model | Screw Diameter (mm) | L/D ratio | Screw speed Max. (rpm) | Motor required (KW) | Output (Kg/h) |
|---|---|---|---|---|---|
| HCGX45 | Ф45 | 38 | 10-150 | 45 | 150-200 |
| HCGX65 | Ф65 | 38 | 20-150 | 110 | 350-450 |
| HCGX75 | Ф75 | 38 | 20-150 | 160 | 600-700 |
| HCGX90 | Ф90 | 38 | 20-110 | 250 | 1000-1100 |
| HCGX120 | Ф120 | 38 | 20-90 | 400 | 1500-1600 |
| HCGX150 | Ф150 | 38 | 20-75 | 450 | 1800-2000 |
High efficient 40 series
| Model | Screw Diameter (mm) | L/D ratio | Screw speed Max. (rpm) | Motor required (KW) | Output (Kg/h) |
|---|---|---|---|---|---|
| HCGS75 | Ф75 | 40 | 20-150 | 200 | 700-850 |
| HCGS90 | Ф90 | 40 | 20-110 | 315 | 1250-1350 |
| HCGS120 | Ф120 | 40 | 20-90 | 450 | 1900-2000 |
High-Speed Screw Barrel Treatments
- 1. Bimetallic Groove Barrel and Bimetallic Barrier Screw
- 2. Nitriding Groove Barrel and Bimetallic Barrier Screw
- 3. Nitriding Goove Barrel and Nitriding Barrier Screw
Additional Spare Parts
- -Heaters and fans for screw barrel
- -Flange for screw barrel
- -Gearbox
Learn more about our high-speed extrusion screw barrel parameters and related spare parts. Additionally, we offer a range of extruder screw barrel parts and accessories to enhance your production line. Visit our Single Screw Barrel Accessories page for more details.
Screw and Barrel Buying Guide
- 1. Inspection: Inspection of original screws, barrels, and related components.
- 2. Rebuilding: Rebuilding services to OEM specifications.
- 3. Modification: Modification services to improve melting and mixing performance.
- 4. Emergency Service: Emergency turnaround service to minimize machine downtime.
Follow our Detailed Step-by-Step Guide to Order from HUACHEN Screw Barrel for a seamless purchasing experience.
For inquiries or more information about our High Speed Screw and Barrel for HDPE Pipe Extrusion, please contact us.
About HUACHEN Screw
Since 1993, HUACHEN Screw has been a leading manufacturer of high-speed extrusion screw barrels in Zhoushan Jintang. With extensive experience in designing and processing plastic machinery accessories, we offer a wide range of services including made-to-order screw barrels, rebuilding, modification, and upgrades. Our products are trusted by customers worldwide.
