LDPE， LLDPE， HDPE Blown Film Screw Barrel

HUACHEN Screw has been an outstanding LDPE， LLDPE， HDPE Blown Film Extrusion Machine Screw Barrel manufacturer in Zhoushan Jintang since 1993. With many years of experience in designing and processing plastic machinery replacement parts, HUACHEN Screw can provide its customers with a wide range of services, including drawing rebuilding, design, modification, and customization. Our company has also successfully exported and supplied screw barrels to customers worldwide.

>>Learn more about our company

LDPE， LLDPE， HDPE Blown Film Extrusion Machine Screw Barrel

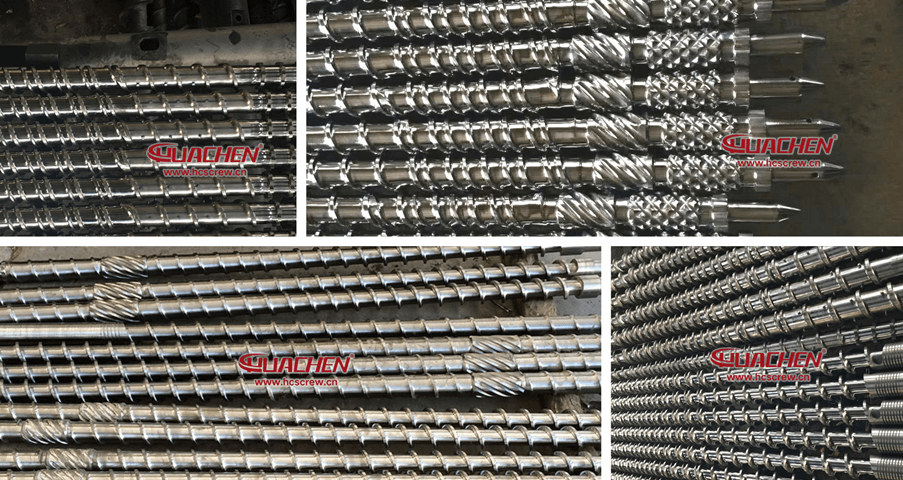

1. Screw types: conventional screw, barrier screw, Maddock screw， mixing head (the pineapple), new combination screw, progressive screw with good mixing effect. Barrel type: smooth bore barrel, groove feeding bore barrel (high efficiency type)

2. The blown film screw is made of high quality alloy steel 38CrMoAlA, which is tempered, precision machined and nitrided to provide outstanding corrosion resistance and hardness.

3. Blown film Screws used in blown film machines have a diameter ranging from 45mm to 120mm, with an L/D ratio ranging from 25 to 30mm. The screw provides effective blow film extruding and plasticizing capabilities, and the film is evenly heated. The blown film is bright, uniform, and reliable due to automatic temperature control.

4. Specially designed blown film screws are equipped with forced conveying groove feeding barrels, which feature a reasonable structure, stable performance, high output, reduced energy consumption, and clear layering. It is ideal for the production of high strength, ageing resistant, drip-free, translucent, heat preservation and other multifunctional films.

5. All blown film extrusion machine screw barrel are machined with high precision CNC screw barrel milling machines. It ensures that the extrusion performance of each set of screw barrels remains high.

6.We offer practical anti-wear solutions for screw barrels of film blowing machines that process recycled materials, as well as high speed and high efficiency blown film extrusion machines. Our bimetallic alloy overlay welding process and hard chrome plating processing technology are applied to the wear-prone parts of the screw, which improves the screw’s hardness and corrosion resistance, resulting in a longer service life and a more reasonable price.

Application

Plastic blown film machine. Double winding film blowing machines.

Manufacturing of agricultural films and ground films made from LDPE, HDPE, and LLDPE blown films.

Parameters

1. Single screw diameter available: 45 mm to 120 mm

2. Single screw L/D ratio available: 25 to 30

3. Screw max. length: ≤10000 mm

4. Barrel max. out diameter: ≤350 mm

5. Based materials: Premium 38CrMoAlA

6. Plasma nitriding surface hardness: HV 1000-1100

7. Plasma nitriding depth: ≥ 0.7 mm

9. Nitriding fragility: less than Grade I.

11. Surface Roughness: Ra 0.4 μm

12. Screw Linearity: ≤ 0.015mm

13. Alloy depth: 4-6 mm

14. Alloy surface hardness: ≥ HRC 61

>>Learn more about our Blown Film Extrusion Machine Screw Barrel parameters

The ultimate solution for abrasion and wear

Level 3: bimetallic barrel and bimetallic screw;
Level 2: nitrided barrel and bimetallic screw;
Level 1: nitrided barrel and nitrided screws;
Hard chrome coating screw as an option process.
Barrel with centrifugal casting process as an option process.

Production time

Complete set of LDPE， LLDPE， HDPE blown film extrusion machine screw barrel within 20-30 days depending on the complexity of the part.

You can get creative with our wide range of products at reasonable prices. We can produce screws and barrels that are suitable for high speeds and pressures using the blown film extrusion machine and various additives. It’s the China Original Factory for LDPE, HDPE, and LLDPE blown film screw barrels. If you have any questions, please feel free to contact us.
