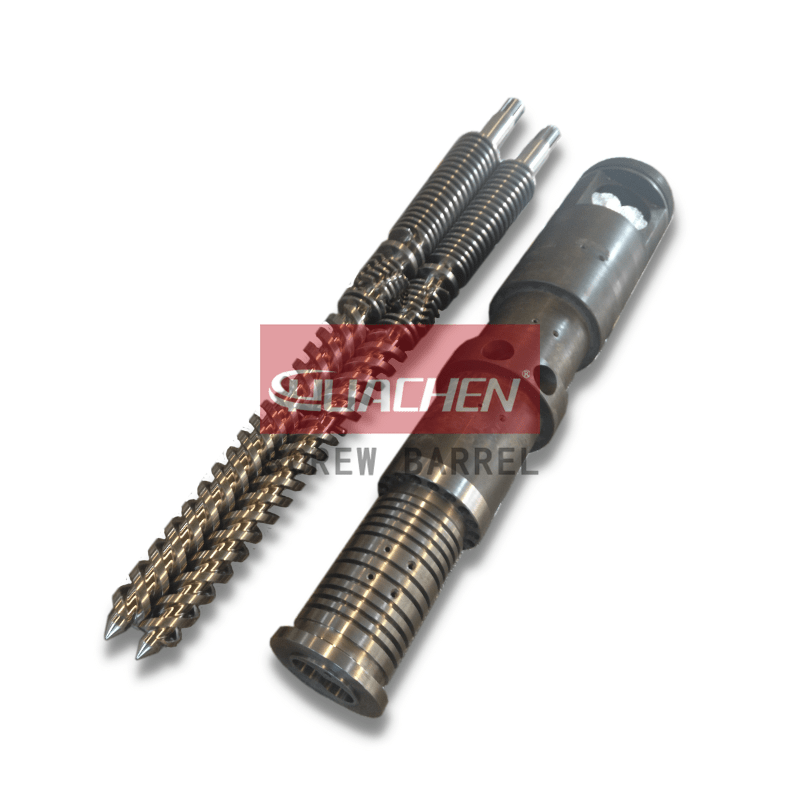

LVT Flexible Laminate Flooring Conical Twin Screw Barrel
● PVC / LVT / Luxury vinyl tile, virgin or recycled materials
● sheet, plank, film, flooring
● Filler recipe ratio of 0-50%, 50-100%
● Min. Order (MOQ): 2 conical screws + 1 barrel
● Based material: Premium 38CrMoAlA tempered and nitrided
● Anti-wear solution: bimetallic barrel + bimetallic screw, chrome coating screw
You Need Better Conical Twin Screw Barrel at Good Price!
- Product Detail
Enhance Your LVT Flooring Production with HUACHEN’s Conical Twin Screw Barrels
Upgrade Your Equipment with the Best in the Industry!
Discover how HUACHEN’s advanced conical twin screw barrels can revolutionize your LVT flexible laminate flooring extrusion process. Our state-of-the-art technology ensures superior performance, increased efficiency, and significant cost savings.
Why Choose HUACHEN’s Conical Twin Screw Barrels?
- –Superior Quality: Engineered from premium 38CrMoAlA tempered and nitrided steel, ensuring maximum wear and corrosion resistance.
- –High Efficiency: Designed for optimal extrusion capacity and improved surface gloss of LVT laminate sheets.
- –Versatile Applications: Ideal for producing luxury vinyl tiles, sheets, planks, films, and decking.
Key Features
- –Specialized Design: Unique compression ratio and thread construction for LVT laminate flooring production.
- –Low-Shear, High-Conveyance: Ensures stable plasticization and high-quality extrusion output.
- –Durable Materials: Bimetallic alloy coatings on screw flights and barrel inner walls for enhanced longevity.
- –Standard Models: Available in mainstream models like HCZS80/156 and HCZS92/188, compatible with various production requirements.
Two Levels of Screw Barrel Options
- –Level 2: SKD sleeve fitted barrel and bimetallic screws for premium performance.
- –Level 1: Bimetallic barrel and bimetallic screws for excellent durability and efficiency.
Applications
- –LVT Flooring Production: Perfect for luxury vinyl tile, laminate sheet, and plank extrusion.
- –PVC Flexible Lamination: Suitable for producing PVC films and sheets.
- –Wood-Plastic Composite Decking: Ideal for creating durable and attractive decking materials.
Model Specifications
| Model | Speed (RPM) | Motor (KW) | Capacity (kg/h) | Screw length (mm) | Barrel length (mm) | Weight (kg) | Package dimension (m) |
|---|---|---|---|---|---|---|---|
| HCZS80/156 | 75 | 55 | 450 | 2116 | 1850 | 775 | 2.2*0.4*0.5 |
| HCZS92/188 | 34.7 | 110 | 750 | 2805 | 2520 | 1500 | 3.0*0.5*0.6 |
Premium Materials
- 1. Core Materials: 38CrMoAlA, UNS K24065, SACM645, 41CrAlMo7-10, SKD11
- 2. Plasma Nitriding Layer: 0.7 mm
- 3. Nitriding Surface Hardness: ≥HV1000
- 4. Nitrided Screw Barrel Fragility: Less than Grade 1
- 5. Surface Roughness: Ra 0.4μm
- 6. Screw Linearity: ≤0.015 mm
- 7. Alloy Surface Hardness: HRC≥61
- 8. Alloy Depth: 1.5 mm
- 9. SKD Sleeve Surface Hardness: HRC≥62
- 10. SKD Sleeve Thickness: 6-10mm
For more detailed information, visit our screw barrel parameters page.
Fast Production Times
- –Standard Models: Ready within 7 days.
- –Peak Season Lead Time: Up to 45 days.
- –Off-Season Lead Time: Within 33 days, depending on part complexity.
How to Order from HUACHEN Screw
Ready to upgrade your production with HUACHEN’s conical twin screw barrels? Follow our simple Step-by-Step Guide to Order from HUACHEN Screw Barrel for a seamless purchasing experience.
For inquiries or more information about our LVT flexible laminate flooring extrusion conical twin screw barrels, please contact us.
About HUACHEN Screw
Since 1993, HUACHEN Screw has been a leading manufacturer of conical twin screw barrels in Zhoushan Jintang. As members of the China Building Decoration and Resilient Flooring Association and directors of the China Jintang Plastic Screw Industry Association, we offer a wide range of services including custom designs and modifications. Our products are trusted worldwide for their durability and efficiency.
