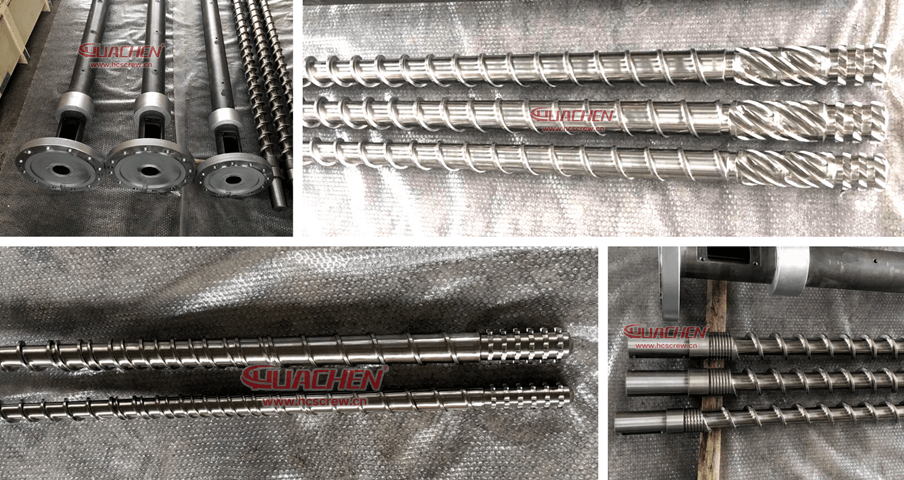

Plastic Film PP Film Extrusion Screw Barrel

HUACHEN Screw has been an outstanding manufacturer of plastic film PP film extrusion screw barrels in Zhoushan Jintang since 1993. With many years of experience designing and processing plastic machinery replacement parts, HUACHEN Screw can provide its customers with a wide range of services, including drawing rebuilding, design, modification, and customization. Our company has also successfully exported and supplied screw barrels to customers worldwide.

>>Learn more about our company

Plastic film PP film extrusion screw barrel

1. Single screw types: conventional screw, barrier screw, Maddock screw， mixing head (the pineapple), new combination single screw, optimised mutation screw. Barrel type: smooth bore barrel, groove feeding bore barrel (high speed type)

2. The screw is made from high quality alloy steel 38CrMoAlA that provides superior corrosion resistance and hardness. The screw is tempered, precision machined, and nitrided for added durability.

3. The diameter of screws used in PP film extrusion machines ranges from 45 mm to 120 mm, and the L/D ratio ranges from 25 mm to 28 mm. The screw provides effective film extrusion and plasticization capabilities, and the film is heated evenly. The temperature is automatically controlled during plastic film production, ensuring that the film is bright, uniform, and reliable.

4. Specially designed screws are equipped with forced feeding grooved bore barrels, which feature a reasonable structure, stable performance, high output, reduced energy consumption, and clear layering. It is ideal for the production of high strength, aging resistant, drip-free, translucent, heat preservation and other multifunctional films.

5. Plastic film or PP film extrusion machine screws and barrels are machined by CNC screw milling machines. This maintains the high extrusion performance of each screw barrel set.

6. We provide anti-wear solutions for plastic film extrusion screw barrels and high-speed and high-efficiency film extrusion machines. By using our bimetallic alloy overlay welding process and chrome plating technology, we improve the hardness and corrosion resistance of the wear-flight parts of the screw, resulting in longer service life and lower cost.

Application

Plastic film making machine.

PP film extrusion plant: BOPP film, CPP film, IPP film.

Fresh material, or recycled materials.

Parameters

1. Single screw diameter available: 45 mm to 120 mm

2. Single screw L/D ratio available: 25 to 28

3. Screw max. length: ≤10000 mm

4. Barrel max. out diameter: ≤350 mm

5. Based materials: Premium 38CrMoAlA

6. Plasma nitriding surface hardness: HV 1000-1100

7. Plasma nitriding depth: ≥ 0.7 mm

9. Nitriding fragility: less than Grade I.

11. Surface Roughness: Ra 0.4 μm

12. Screw Linearity: ≤ 0.015mm

13. Alloy depth: 4-6 mm

14. Alloy surface hardness: ≥ HRC 61

>>Learn more about our PP Film Extrusion Screw Barrel parameters

The ultimate solution for abrasion and wear

Level 3: bimetallic barrel and bimetallic screw;
Level 2: nitrided barrel and bimetallic screw;
Level 1: nitrided barrel and nitrided screws;
Hard chrome coating screw as an option process.
Barrel with centrifugal casting process as an option process.

Production time

Complete set of PP film extrusion screw barrel within 20-30 days depending on the complexity of the part.

You can get creative with our wide range of products at reasonable prices. We can produce screws and barrels that are suitable for high speeds and pressures using the plastic film extrusion machine, PP film extrusion machine, and various additives. It’s the China Original Factory for PP film extrusion screw barrel. If you have any questions, please feel free to contact us.
